CR Intensive Granulating Mixer for Petroleum Proppant

2024.9.28 | CO-NELE

The CR intensive granulating mixer is a special equipment for granulation in ceramic industry. It has the advantages of high production efficiency, full automatic control and no dust pollution.

Petroleum proppant production process: First broken by the crusher, then transported to the distribution bin. After mixing with other materials, the material is fed into a ball mill and ground into powder. A classifier will be used for sizing. The material will be fed into the silo again. The raw material will then go into the pelletizing machine and be made into pellets of different sizes. Pellets are sent to the screening facility. Pellets of qualified size will be transported to a rotary kiln for calcining. Oversized pellets will be sent back for grinding.
After the pellets are calcined by the rotary kiln, the qualified product ceramic sand is obtained. Finally, the ceramic sand is cooled by the cooling machine, and the oil fracturing proppant of different particle sizes is obtained after screening, and the production process is finished.

The ceramic proppant produced by the intensive granulating mixer has the advantages of high strength, pressure resistance, wear resistance, good roundness, impact resistance and permeability resistance.

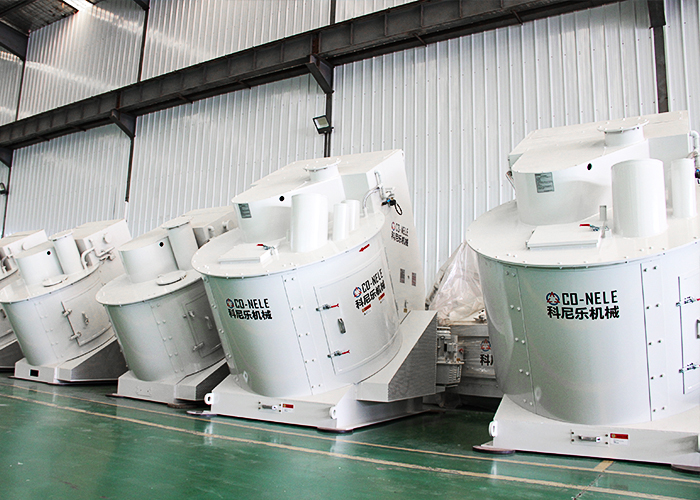

CR Intensive Granulating Mixer for Petroleum Proppant

Petroleum proppant granulating mixer features:
* Short time, good uniformity
* The granulation process is controlled and driven, and the mixing uniformity is high
* Economical operation and efficient granulation achieve low energy consumption and low wear
* Reliable product quality and batch processing
* Rugged design ensures long service life and high availability

Back To The List

CR20 Inclined Intensive Mixer for Lithium Battery Sagger Production, Uniform Mixing

Intensive Mixer Efficient and uniform mixing to improve the quality of saggers,The CR20 inclined intensive mixer adopts a unique inclined design, combined with high-strength mixing blades, to ensure that the material achieves a highly uniform mixing effec

2025.2.24

Intensive Mixer - Mixing Powdered Metals for 3D Printing

As 3D printing advances into more precise and complex applications, CONELE remains committed to innovating material preparation equipment and driving industry transformation.

2025.2.21

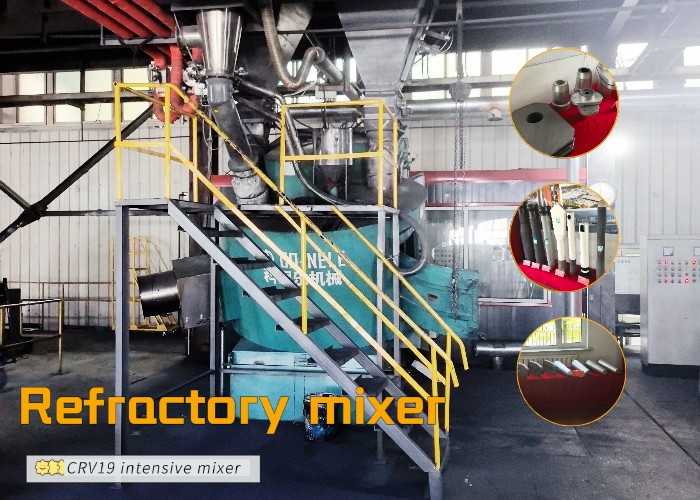

CO-NELE Intensive Mixers in Refractory Preparation,Refractory Mixer Case
